Details

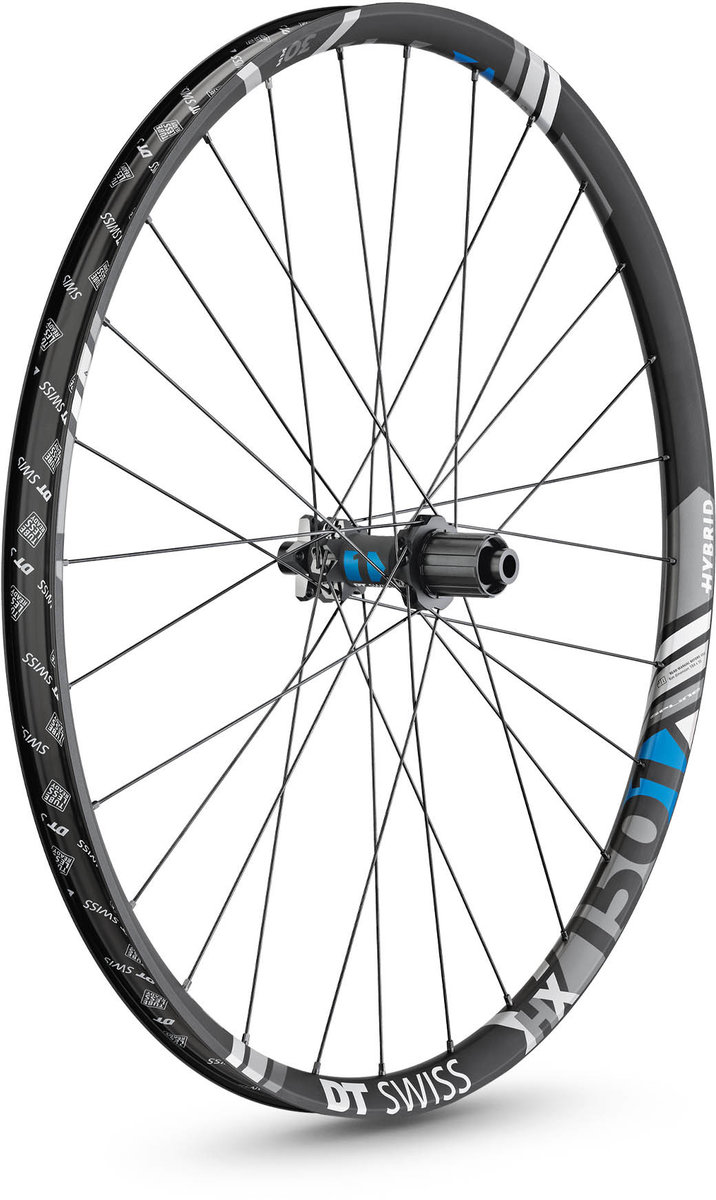

When you head into trouble on the trail, be it up or down, the HX 1501 SPLINE ONE 30 will get you out victorious. It has the power to attack burly terrain and to go fast everywhere else. Sitting right in the middle of the strength-to-weight and strength-to-width range, it works with many tire sizes and is the ideal choice for all E-MTB's meant to be ridden on proper MTB terrain. High end through and through, from the lightweight Ratchet System hubs to the industry-leading alloy rim and profile design, the HX 1501 SPLINE ONE 30 isn't a one-day wonder, but a trusty long-term partner.

Going tubeless allows you to run lower tire pressures without the added weight of a tube. Lower tire pressure has many benefits, including greater traction, lower rolling resistance over rough surfaces, and decreased risk of a puncture-related flat.
Tubeless-ready rims and tires are parts of a complete system that eliminate the need for tubes by creating an airtight chamber between the rim and tire. Liquid sealant is added to the chamber to fill small punctures and maintain air pressure while you ride.
UST (Universal Standard for Tubeless) is a specific type of tubeless system that dictates the shape of the rim and tire beads. UST rims should be paired with UST-specific tires for best results.
Specs
Rim Material | Aluminum |
---|---|
Rim Depth | 21mm |
Brake Compatibility | 6-bolt Disc |
Inner Rim Width | 30mm |
Outer Rim Width | 35mm |
Hub | DT 240 |
Spokes | DT hybrid 2 |
Nipples | DT ProLock Squorx ProHead aluminum |
Axle | 148 x 12mm Boost |
Lacing | 3-cross |
Valve Type | Presta |
Extras | Tubeless tape 32mm, Tubeless valve MTB 32mm, Sram XD freehub body kit (Shimano/SRAM model only) |
* Subject to change without notice.
