Details

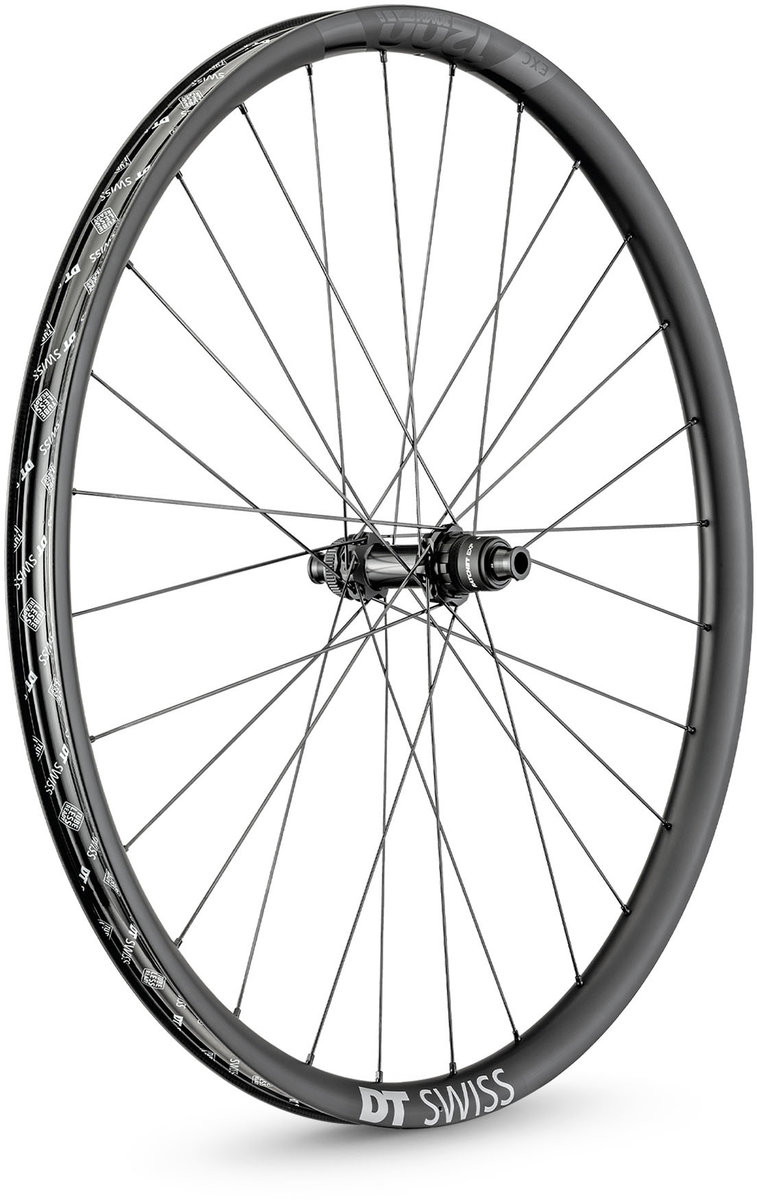

Learning from our very successful EWS riders, we designed the rims for the EXC 1200 SPLINE 30 to be tough enough for everything the best in the sport can throw at them yet light enough to spin all day. And, they're the right width to accommodate today's high-volume enduro tires. This rim is complemented by our completely new top-end Ratchet System hubs which maintain the lightweight theme, as do the bladed and butted straight-pull spokes. The result is any enduro rider's dream wheel: Peace-of-mind in the downhills and enough breath for a chat on the climbs.

Going tubeless allows you to run lower tire pressures without the added weight of a tube. Lower tire pressure has many benefits, including greater traction, lower rolling resistance over rough surfaces, and decreased risk of a puncture-related flat.
Tubeless-ready rims and tires are parts of a complete system that eliminate the need for tubes by creating an airtight chamber between the rim and tire. Liquid sealant is added to the chamber to fill small punctures and maintain air pressure while you ride.
UST (Universal Standard for Tubeless) is a specific type of tubeless system that dictates the shape of the rim and tire beads. UST rims should be paired with UST-specific tires for best results.
Specs
Rim | Carbon |
---|---|
Brake Compatibility | Center Lock Disc |
Cassette Compatibility | SRAM XD MTB |
Axle | 148 x 12mm |
Hub | DT 180 |
Spokes | DT aero comp straightpull |
Nipples | DT ProLock Squorx ProHead alu |
Lacing | 3-cross |
Inner Rim Width | 30mm |
Outer Rim Width | 36mm |
Rim Depth | 25mm |
Valve Type | Presta |
Extras | Tubeless tape 32mm, TL valve aluminum black 18-25mm, IS 6-bolt adapter MTB, Shimano Micro Spline freehub kit, tools, wheel bag |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
148 x 12mm / Carbon / 29-inch | 07613052287461 | WEXC120TEDRCA09800 |
